Multi Air Conditioner
The Kaden Multi offers the perfect climate solution for residential or light commercial environments. With flexible installation options and the ability to connect up to 5 indoor units including wall mounted, cassettes or ducted air conditioners, for your perfect climate throughout the entire building or home.
Range
KM24
7.3kW
KM28
8.5kW
KM46
12KW
KSI06
2.0kW
KSI09
2.6kW
KSI12
3.5KW
KSI18
5.0KW
KSI24
7.0KW
KMD09
2.6KW
KDM12
3.5KW
KDM18
5.2KW
KDM24
7.0KW
KMC09
2.6KW
KMC12
3.5KW
KMC18
5.2KW
Warranty
5 years
Human comfort
1 year
Non Human Comfort
Simple climate control
Create your perfect climate in every room
Optimal home comfort doesn’t have to come at the expense of space. The Kaden Multi provides ultimate flexibility with a wide range of compact indoor unit options and can provide your perfect climate in up to five rooms on the one outdoor unit, saving on precious space.
A split system made for the future
Kaden KSI split system air conditioners feature a compact, contemporary design that will fit discreetly into any home. New to Kaden, the KSI comes enabled with Wi-Fi capabilities.
What our customers say
“First time user of Kaden and have recently had a 2.6kw unit installed in our bedroom. I had Kaden recommended by an installer and so far I'm very happy with the performance and quality of the unit.”
Julietta
Split System Air ConditionerWhat is the Kaden Multi Air Conditioner?

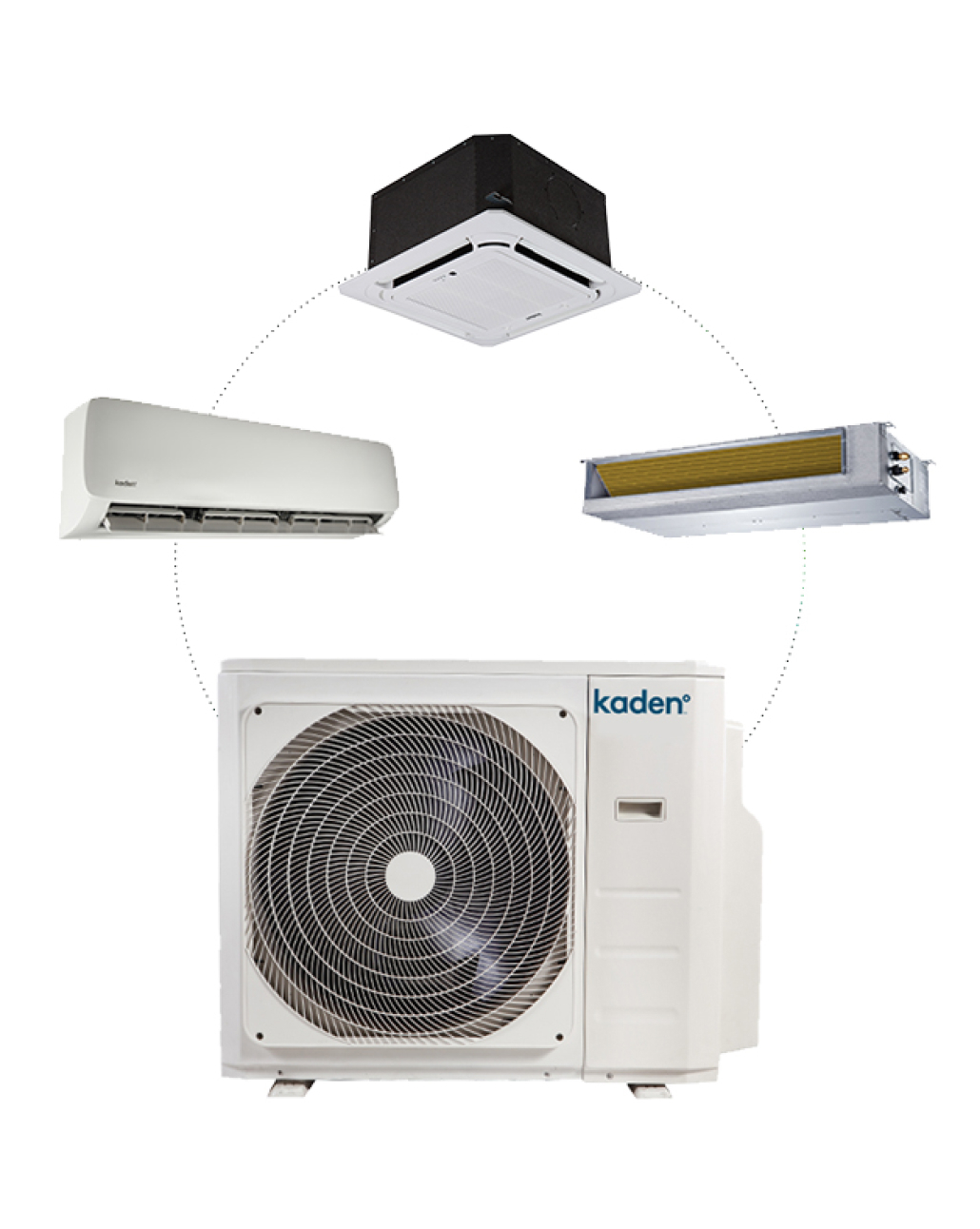

The Kaden Multi Air Conditioner is a multi head system that provides flexible climate solutions for residential and light commercial applications with a range of indoor and outdoor unit options to create your perfect climate. A single outdoor unit can easily be connected to up to 5 indoor units including ducted air conditioners, cassettes and wall mounted air conditioners – allowing precious space to be saved and for individual climate control to be set in different rooms or spaces.

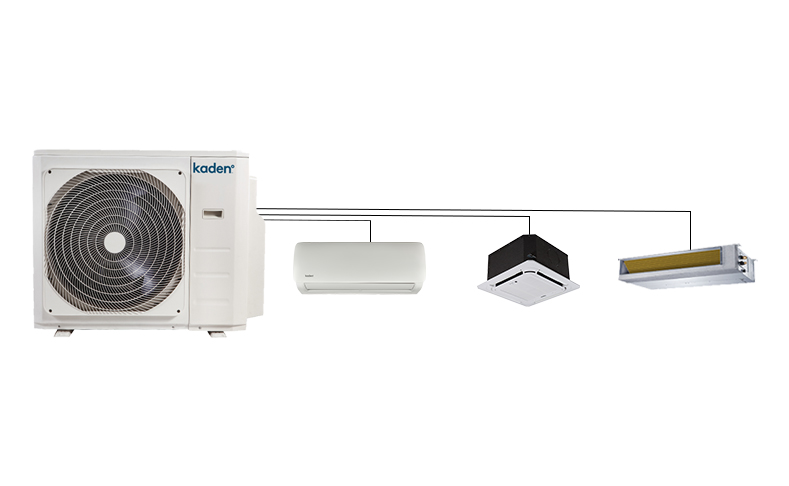

How it Works
Kaden multi air conditioners comprise of an outdoor unit and multiple indoor units. With multiple indoor unit options - Ducted units can be located within your roof space or within a bulkhead, Cassettes Air conditioner can be mounted into your ceiling, wall mounted air conditioners can be located onto a wall and the outdoor unit can be conveniently positioned outside. These units are connected by piping that moves refrigerant between the systems and works together to create your perfect climate. Kaden multi air conditioners are reverse cycle, which means the air conditioner can both cool and heat your space.

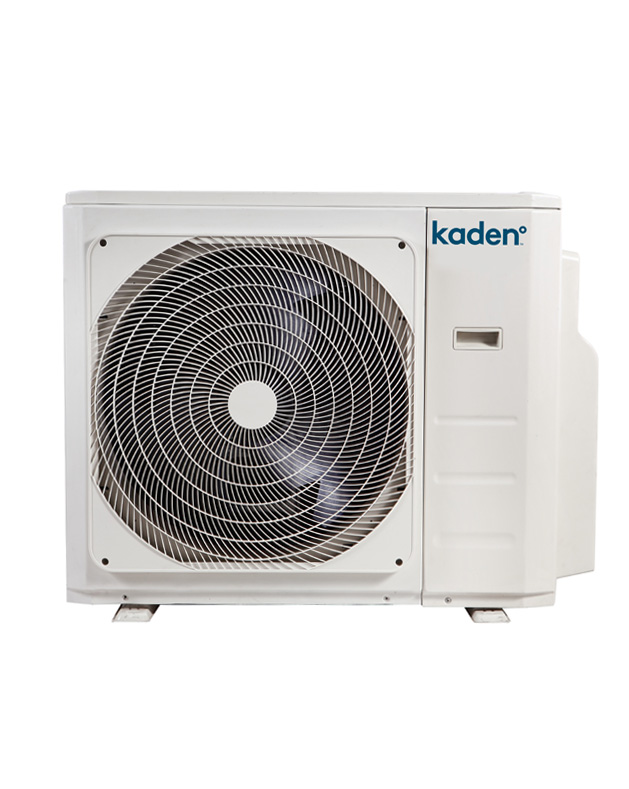

Outdoor Unit Specifications
product code model number Unit Width (MM) Unit Height (MM) Unit Depth (MM) Unit Weight (KG) Refrigeant Type Heating Capacity (Kw) Cooling Capacity (Kw) 3104017 KM24 890 673 342 48.1 R32 7.3 7.3 3104018 KM28 946 810 410 66.2 R32 8.7 8.5 3104020 KM46 946 810 410 75.9 R32 12.0 12.0 Wall Mount Air Conditioner Specifications

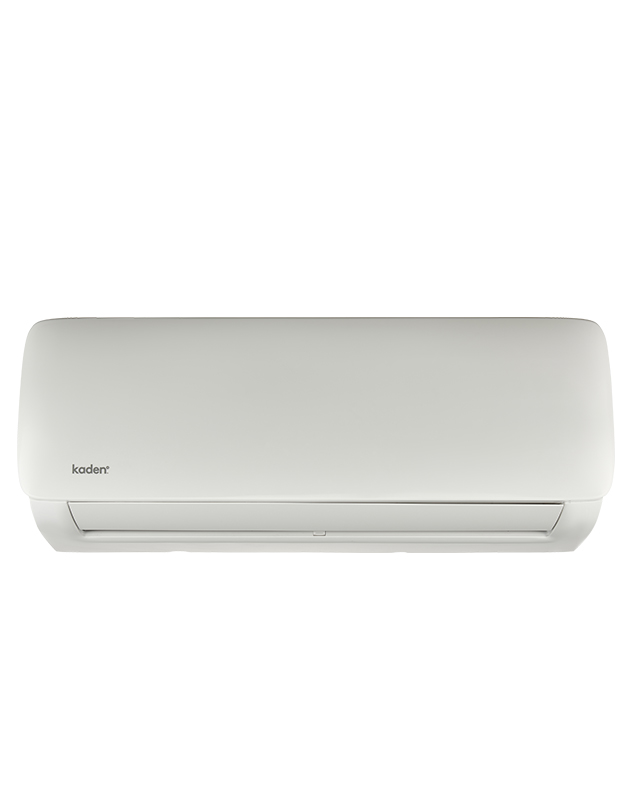

product code model number Unit Width (MM) Unit Height (MM) Unit Depth (MM) Unit Weight (KG) Refrigeant Type Heating Capacity (Kw) Cooling Capacity (Kw) 3110148 KSI06 200 729 292 8.0 R32 2.3 2.0 3110151 KSI09 200 729 292 8.5 R32 2.7 2.6 3110154 KSI12 200 802 295 8.5 R32 4.0 3.6 3110157 KSI18 228 971 321 11.0 R32 5.2 5.0 3110160 KSI24 234 1082 337 13.3 R32 7.5 7.0 Ducted Air Conditioner Specifications

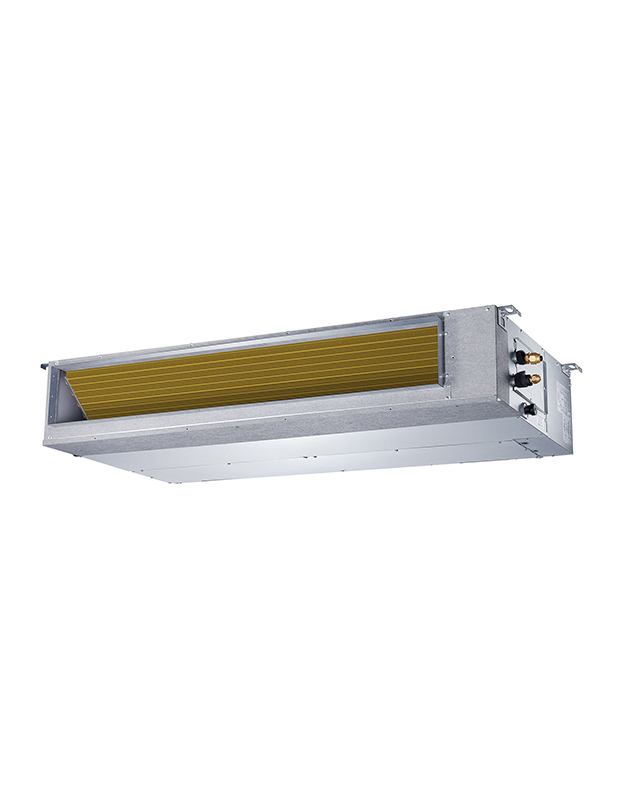

product code model number Unit Width (MM) Unit Height (MM) Unit Depth (MM) Unit Weight (KG) Refrigeant Type Heating Capacity (Kw) Cooling Capacity (Kw) 3104013 KMD09 700 200 450 18.0 R32 2.9 2.6 3104014 KMD12 700 200 506 18.0 R32 3.8 3.5 3104015 KMD18 880 210 674 24.4 R32 5.5 5.0 3104016 KMD24 1100 249 774 32.3 R32 7.6 7.0 Cassette Air Conditioner Specifications

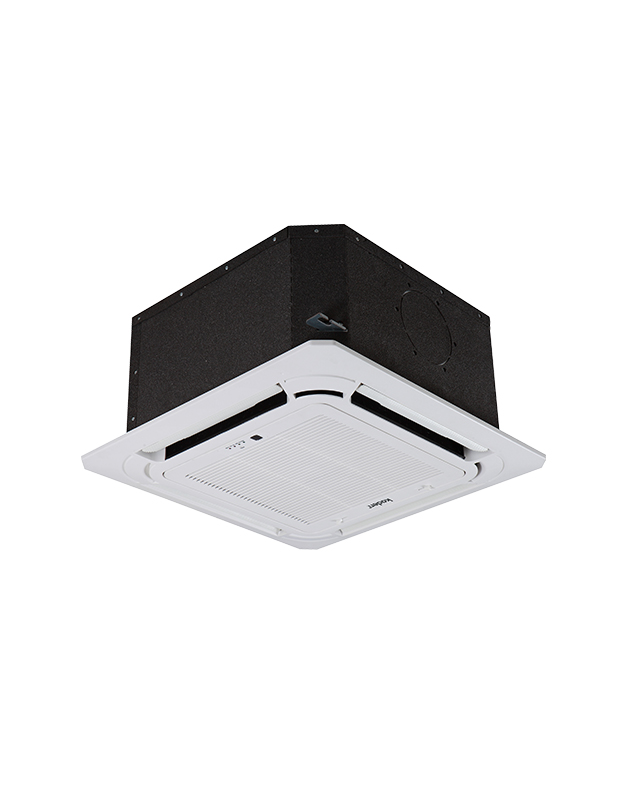

product code model number Unit Width (MM) Unit Height (MM) Unit Depth (MM) Unit Weight (KG) Refrigeant Type Heating Capacity (Kw) Cooling Capacity (Kw) 3104009 KMC09 570 260 570 14.5 R32 2.9 2.6 3104010 KMC12 570 260 570 16.2 R32 4.1 3.5 3104011 KMC18 570 260 570 16.2 R32 5.4 5.3
